Multi-Material Sandwich Panel Production Line - EPS, Mineral Wool, Glass Wool & PU

A sandwich panel line is a bigger investment than a single former, so the machine must be matched to your market from day one. This Multi-Material Sandwich Panel is specified around your panel width, core material and thickness range, so the first panels you sell already meet your customers' expectations.

Overview

The multi-material sandwich panel production line is a versatile integrated line for producing insulated sandwich panels with EPS foam, mineral wool, glass wool and polyurethane cores. It precisely composites insulation core materials with metal facing sheets into compact, stable panels with insulation, fire resistance, noise reduction, waterproofing and anti-corrosion performance.

Manufactured by Zhongtuo (ZTRFM) in Botou, Hebei, China, the line supports continuous high-volume production, customization of irregular and multi-size sheets, and a zero-waste process for efficient raw material utilization.

The demand for insulation sandwich panels in the global building materials market is becoming increasingly diversified, and there are significant differences in the requirements for the core material, insulation performance, and fire rating of the panels in different application scenarios. Traditional single material production equipment can no longer meet the diversified business needs of enterprises. The multi-functional sandwich panel production line aims to solve the industry's pain points, and realize the one-step matching production of EPS foam, mineral wool, glass wool, and polyurethane four mainstream insulating core materials. It is a highly versatile integrated panel production equipment.

The equipment adopts advanced composite structure production technology, which can precisely composite various insulation core materials with metal panels, forming a compact and stable sheet structure with multiple properties such as insulation, fire resistance, noise reduction, waterproofing and anti-corrosion. Relying on uninterrupted continuous production technology, the equipment can operate stably for a long time, with even output capacity and no issues such as capacity fluctuations or downtime, fully ensuring the delivery of large quantities of orders for enterprises. At the same time, the device supports customization of irregular and multi size sheets, which can flexibly match the personalized material needs of various engineering projects.

In terms of equipment maintenance and operation, product advantages are particularly prominent. The semi-automatic intelligent control panel simplifies the operation process and reduces the threshold for manual operation; The hydraulic cutting device ensures the cutting accuracy and flatness of the sheet metal; The fully automatic zero waste process achieves efficient utilization of raw materials and eliminates production losses. The whole machine is made of standardized industrial materials, which are wear-resistant, durable, and have a low failure rate. It is easy to maintain daily and greatly reduces the production and operation costs of enterprises. It is widely suitable for various building materials production enterprises around the world.

A line that produces one core type reliably is worth more than a multi-purpose line that changes over slowly. We help you pick the configuration that matches the demand in your region, and plan a clear upgrade path for adding other core types later.

Technical Specifications

Core materials	EPS foam / Mineral wool / Glass wool / Polyurethane
Panel structure	Metal facing sheet + insulation core composite

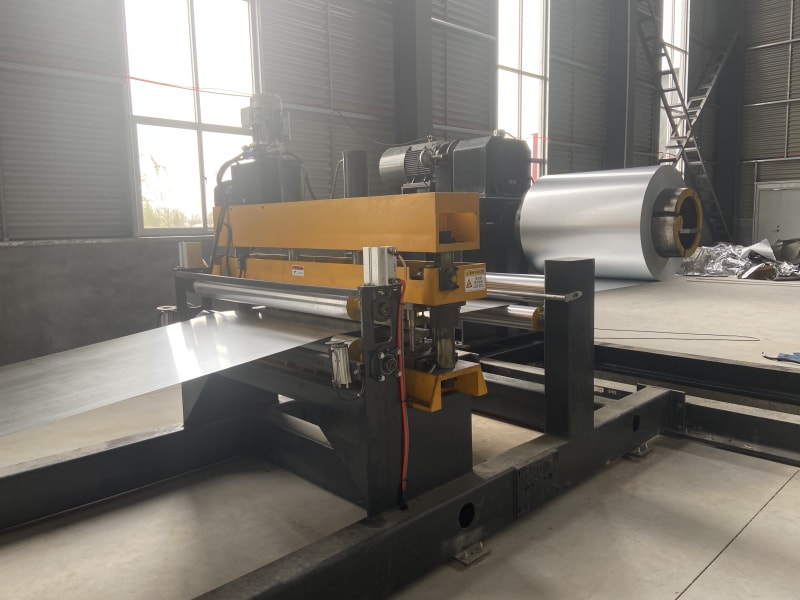

Cutting device	Hydraulic cutting, high precision and flat edges
Control system	Semi-automatic intelligent control panel
Production mode	Continuous production, zero-waste process
Customization	Irregular and multi-size sheets supported
Panel properties	Insulation, fire resistance, noise reduction, waterproofing, anti-corrosion

Key Specifications of the Multi-Material Sandwich Panel

Length presets, counting and profile programs run on the Semi-automatic intelligent control panel, so operators switch between jobs from the panel without mechanical re-setup. The machine is built to run EPS foam / Mineral wool / Glass wool / Polyurethane coil, and the tooling path is set up for these coated or galvanized materials without surface marking. Cutting is done by Hydraulic cutting, synchronized with line speed so sheet ends stay square and burr-free.

FAQ

What core materials does the line support?

EPS foam, mineral wool, glass wool and polyurethane — the four mainstream insulation core materials, switchable on one line.

Can panel sizes be customized?

Yes. Irregular and multi-size sheets can be produced to match project requirements.

What is the minimum order quantity?

The MOQ is 1 set.

What after-sales service is provided?

Machinery test report and video outgoing-inspection are provided with every machine, plus a 1-year warranty and online support.

What control system is used?

The machine runs on Semi-automatic intelligent control panel. It stores length and profile programs, tracks production counts and keeps cutting synchronized with line speed.

Which coil materials can it form?

The line processes EPS foam / Mineral wool / Glass wool / Polyurethane. For coated coil we set the material path to avoid surface marking, and we confirm the coating type before production.

What panel width and thickness are supported?

Common panel widths are 950-1250 mm with thickness from 30 mm to 200 mm depending on the core. Send your panel specification and we confirm the line configuration.

What is the typical production capacity?

Capacity depends on line speed and panel length; as a reference, mid-size EPS lines produce several hundred square meters per shift. We calculate capacity for your specific panel mix.

Can I start with EPS and upgrade to rock wool later?

Yes, with the right line design the core feeding and cutting sections can be upgraded. We recommend confirming your roadmap when ordering so the initial line is built upgrade-ready.

How many people operate the line?

A sandwich panel line typically needs 4-8 operators depending on automation level, from coil feeding to stacking. We provide the manning plan with the quotation.
